Zoomlion 56m Foundation Piling Machine Zr160L

Product Categories
Zhengzhong Technology Industrial Co. , Ltd.，
Contact Now

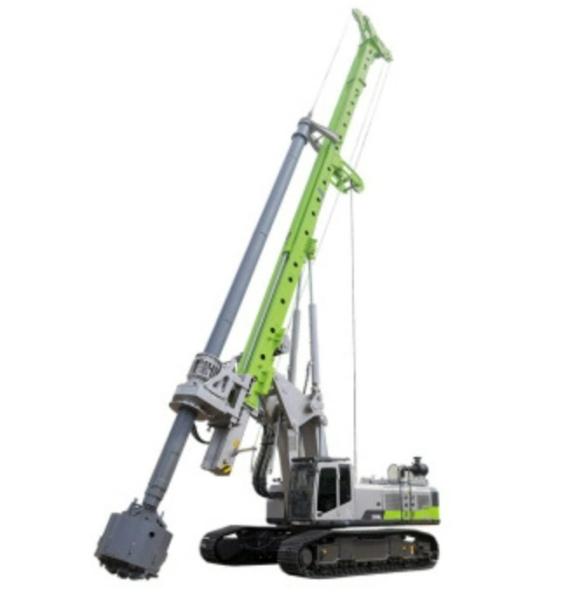

Zoomlion 56m Foundation Piling Machine Zr160L

Brand Name : zoomlion

Model Number : Zr160L

Place of Origin : China

MOQ : 1

Price : Negitionable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10

Delivery Time : 30 days after receiving down payment

Packaging Details : No packaging

Brand : zoomlion

Model : Zr160L

Drilling Speed : 5~33r/Min

Line Speed(Main Winch) : 73m/Min

Traction Force : 330kn

CLine Pull(Main Winch)ountry or Origin : 170kn

Contact Now

Zoomlion 56m Rotary Drilling Rig Zr160L
Products Description
China Supplier ZOOMLION 56m Rotary Drilling Rig ZR160L
The main winch is located underneath the mast,making it very convenient to observe the walking rope;
The over-loading proof device of the crowding system can protect the Kelly bar effectively and make full use of capacity of the machine to ensure verticality of the borehole;
Zoomlion's specific-use in-house telescopic-crawler undercarriage is used to achieve superior stability and transport convenience;
The automatic engine power control system jointly controls engine speed,hydraulic system pressure and main pump displacement to protect the engine to the most extent,making the engine more economic,efficient,reliable and keeping the machine in the optimum operating status;
Drilling tools for different purposes with different purposes with different specifications such as long or short augers,generic-use drilling buckets and core barrels,etc.,are equipped to satisfy construction requirements in different geological conditions.
Product Paramenters
Torque(KN.M)
160
Drilling Diameter(mm)
1500
Drilling Depth(m)
inter-locking
44
Friction
56
Drilling Speed(r/min)
5~35
Engine Model
QSB5.9
Rated Power(kw)
154
Max.Crowd Force(kN)
160
Max.Crowd Cylinder Pull(kN)
160
Line Pull(main winch)(kN)
160
Line Speed(main winch)(m/min)
82
Line Pull(aux.winch)(kN)
60
Line Speed(aux.winch)(m/min)
80
Operating Mass(t)
50
Traction Force(kN)
330
Rope diameter(Main winch)(mm)
26
Rope diameter(auxiliary winch)(mm)
18

Zoomlion 56m Foundation Piling Machine Zr160L


Product Tags:

56m Foundation Piling Machine



Zr160L Foundation Piling Machine



Zoomlion Foundation Piling Machine


Wholesale Zoomlion 56m Foundation Piling Machine Zr160L from china suppliers

Zoomlion 56m Foundation Piling Machine Zr160L Images
